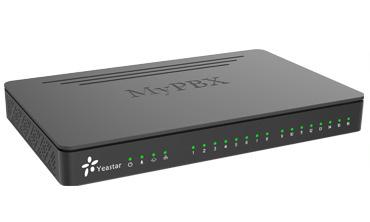

MyPBX Standard - the new compact, feature rich PBX for every-day use. It offers unrivalled features for SMBs (up to 100 users) at a competitive price with unmatched stability and simplicity. It supports various combinations of telephony port interfaces, thus facilitating easy migration to VoIP as one hit or progressively converting your analogue telephony infrastructure into full scale on-site based PBX solution!

Specification and Features

Users: 100
Concurrent Calls: 25
Voicemail: 3000min

Up to 16 Analog Ports (FXO/FXS)
Up to 8 GSM Ports(Quad-Band GSM/GPRS850/900/1800/1900MHz)
Up to 8 UMTS Ports(UMTS 900/2100MHz or 850/2100MHZ or 850/1900MHZ)
Up to 8 BRI Ports
LAN: 1 (10/100Mbps)
WAN: 1 (10/100Mbps)

Size: 280x175x33 mm
Weight: 700g
Power Supply: AC 100~240V/50~60Hz(DC 12V, 5A)

SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263, H263p, H264, MPEG4.
DTMF: Inband, RFC2833, SIP INFO
Echo Cancellation: Supported
LED: Red for FXO/GSM/UMTS, Orange for BRI, Green for FXS
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server, OpenVPN
Multiple Languages Support:
Chinese, Dutch, English, French, German, Hebrew, Korean, Italian,
Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish

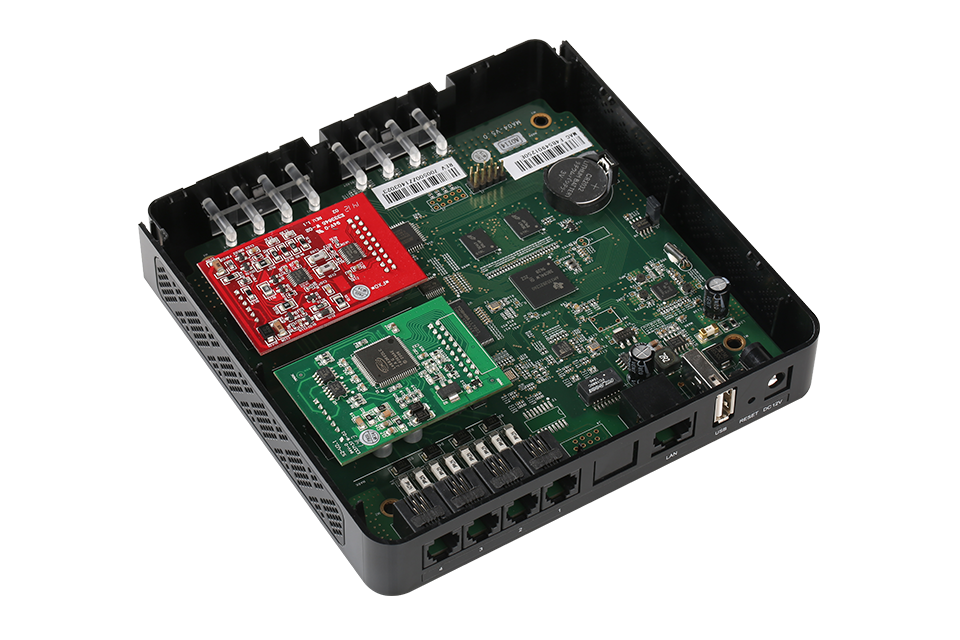

Internal Construction

- Attend Transfer
- Blind Transfer
- BLF Support
- Blacklist
- Callback
- CDR (Call Detail Records)
- Call Forward
- Call Parking
- Call Pickup
- Call Routing
- Call Transfer
- Call Waiting
- Caller ID
- Conference
- Define Office Time
- Dial by Name
- DISA (Direct Inward System Access)
- DIDs
- Distinctive Ringtone
- DND (Do Not Disturb)
- FAX (T.38)
- Firewall
- Follow Me
- IVR (Interactive Voice Response)
- Intercom/Zone Intercom
- Mobility Extension
- Multi-language Prompt
- Music On Hold
- Music On Transfer
- MyTwins (Double System)
- One touch record
- OpenVPN
- hone Provisioning
- PIN User (PIN Code Control)
- Paging/Zone Paging
- Queue
- Ring Group
- Route by Caller ID
- Skype Integration (Skype Connect)
- SMS to Mail/Mail to SMS
- Speed Dial
- Static Route
- Three Way Calling
- Voicemail
- Voicemail to Email
- Voicemail Forwarding
- Web Based Control Panel
- Spy functions (Normal Spy, Whisper Spy, Barge Spy)

iKatron Solutions installs this system and seamlessly integrates it with the rest of your business IT infrastructure!
