Network Video Recorders (NVR) and Analogue Encoders

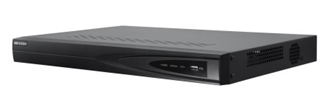

Hikvision NVR, 80Mbps Input , 8 Independent PoE Ports, 2 SATA Interfaces + 2TB HDD

The DS-7600 Embedded NVR series simultaneously provides data and power connections over one cable to make easy plug and play installation and configuration. Featuring 8 PoE network interfaces this feature saves the user valuable time. With HDMI/VGA output at HD1080P and 5 Mega pixel resolution recording, the DS-7600 series NVRs offer complete HD surveillance experiences. Adaptable in any installation space with smaller case design, Hikvision 'plug and play' NVRs give you flexibility as well as high performance and reliability.

  • 8/16 channels IP camera input
  • Third-party network cameras supported
  • Up to 5MP video recording
  • HDMI and VGA output up to 1920x1080P resolution
  • 8 independent PoE network interfaces
  • Plug & Play automatic installation and configuration
  • 2 SATA HDD interface up to 2TB each

Hikvision Encoder, 4-ch video & 4-ch audio input, 25fps@4CIF per channel, 1 PoE Ethernet Interface

Convert 4 analogue camera outputs into H.264/ MPEG4/MPEG2/MJPEG format with up to 4CIF real time recording using the HIK-6701HFI Encoder. Capable of supporting multiple network protocols and connectable with Network HDD for LAN based recording storage.

  • H.264/MPEG4/MPEG2/MJPEG encoding standards supported
  • Up to 4CIF real-time encoding
  • One PoE network interface for DS-6701/6704HFI models
  • Connectable with network HDD in NAS, IPSAN mode
  • Support multiple network protocols, including IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP,
  • SMTP, Bonjour, UPnP, SNMPv1/v2c/v3, OnVIF, PSIA, SOCKSv4/v5, etc.;
  • Multiple PTZ protocols

QNAP VS-2108 Pro+ 2 Drive, 8 Channel NVR with local HDMI, RAID 0/1, 2 x GbE, max 180Mbps Powered by the Intel dual-core processor and 4GB of memory, it delivers high performance at a throughput rate of 180 Mbps to ensure stable recordings and smooth playbacks of multiple mega pixel cameras. The 2-bay VS-2108 Pro+ is designed for the SMB and small-office/home office segment with the features of robust performance, solid reliability and high-definition local display.

The VS-2108 Pro+ can support up to 8TB of storage capacity, with 4TB on each hard drive respectively, to accommodate high quality H.264, MPEG-4, M-JPEG, and MxPEG recording videos. The server-grade main board and heat pipe with fanless design assure the solid reliability for maximized system uptime. Moreover, the VS-2108 Pro+ supports local display via an HDMI cable, with up to 180 fps Full HD 1080p local display by hardware decoding.

Advanced Security and Access Control

Ness M1 Gold

The Ness M1 Gold offers unequalled value to System integrators, installers, and end users. Unlike panels that may be strong in automation but weak in security (or vice versa), the M1 Gold boasts a rock solid security foundation with the most imaginative and powerful automation functionality available.

Integrators and Installers will value the flash memory firmware, RS-232 serial port, Ethernet connectivity option, fast PC programming, and ease of installation. End users will welcome the quality and futuristic capabilities of the versatile keypad, voice telephone dialler and the built-in telephone remote. The 500+ word vocabulary pleasantly announces system status, configurable in any sequence to alleviate user intimidation.

M1 offers the flexibility to integrate industry standard systems and components for easy upgrades and system expansion. In addition to the powerful digital dialler, the M1 has a built-in voice dialler, which can call any phone, on or off site, including a mobile phone. Remote telephone control capability allows you to perform tasks; such as, change the temperature setting, control the water heater, lower the garage door, set lighting scenes, arm/disarm the system, control sprinklers, and more by simply picking up the phone – any phone.

  • iMCA Server Compatibility
  • Security
  • Automation
  • Lighting
  • HVAC
  • Access Control
  • Telephone

The AC1000 is a Card Reader and controller in a small compact and slim designed housing. Containing both a Proximity Reader and Controller in one unit and supporting up to 10,000 users the AC1000 provides a perfect solution when small access control systems are required. It will provide Access control for 1 door (Card in, Request to exit out) or can be networked together, via its inbuilt TCP/IP port, to the UNIS management software to build a system of hundreds of doors.

It also makes a great Time and Attendance terminal when used with the Time and Attendance Software Features Include: RF Card - RF card verification method is the most frequently used personal identification method that is easy to use and affordable for access control. Supports up to 10,000 cards. Authentication - Complex verification method supporting both RF card or RF Card and password for efficient access control. TCP/IP - TCP/IP network method that allows for expansion between terminals/servers or terminals/terminals.

  • CPU 32 Bit RISC CPU Cards capacity : 10,000 Log Capacity 20,000
  • Cards Supported 125 Khz Proximity (AC-1000RF)
  • LCD Display 128 × 64 Graphic Display
  • Communication TCP/IP
  • 1 Wiegand, Lock Control
  • 2 ports Control Motor Lock or 1 port Control EM/Strike/Deadbolt
  • Lock Supply voltage Max DC 12V / 450mA
  • Operation Environment -20 ~50° / Lower than 90% RH (Non-condensing)
  • Verification time (1:1) < 0.5 sec
  • Application Access Control, Time & Attendance
  • Dimensions 140(W) X 89(H) X 28(D) mm

iKatron Solutions provision and deploy vast range of IP CCTV, Security and Access control systems and seamlessly integrates them with the rest of your business's IT infrastructure!
